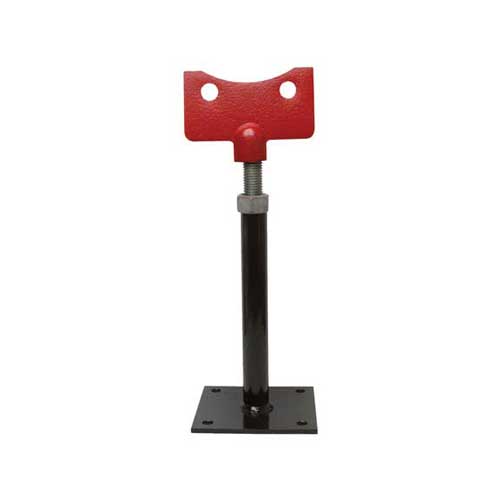

REDI-Jack Pipe Supports

$169.08 – $201.70

Red Hed provides unique pipe supports perfect for supporting large water meters and backflow devices. The Redi-Jack Pipe Support, unlike other designs, features a one-piece support plate and a support tube that can be cut to size in the field. Both the support plate and the base plate are drilled so that the stand can be securely anchored. Red Hed’s quality construction, including black rustproof paint, assures long-lasting service.

TO ORDER SIZE 14″-24″ PLEASE CALL 1 (866)-331-0592

SKU: N/A
Clear

Additional information

Weight N/A
Dimensions N/A
  • Support plate: Cast ductile iron ASTM A-536
  • Adjustment nut: 1” – 8” finish nut plated ANSI-ASME B-18-2-2
  • Adjustment stud: 1” rolled threads steel plated ASTM A-307
  • Main support tube: Steel pipe, schedule 40 ASTM A-53
  • Base plate: Hot rolled ¼” steel ASTM A-36
  • One-piece support plate
  • Comes as a complete assembly
  • Provided with a rustproof finish
  • Support plate available in 2” – 24” sizes
  • Standard 3’ height; other sizes available
