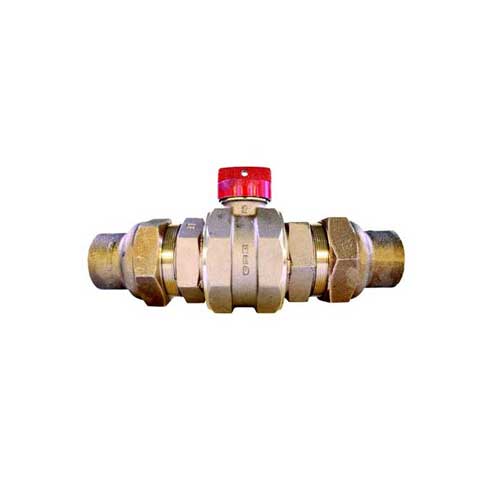

Flare Type Curb Stops
$112.48 – $989.84
Red Hed Ball Curb Stops are precision machined to ensure watertight integrity. They have full-size waterways and heavy castings. They are manufactured from lead-free bismuth brass CDA No. C89833. Valves are repeatedly inspected and hydrostatically tested to 300 psi.
NOTE: For use on soft copper K Tubing, and CTS plastic tubing when using proper CTS Flaring tools. Optional handle is available for above ground operation.
- Additional information
- Available Sizes
- Features
Additional information
| Size | 1″, 1-1/4”, 1-1/2”, 2”, 3/4” |
|---|---|
| Direction to Open | Left (counterclockwise), Right (clockwise) |
| Inlet | 1-1/2” Flare, 1-1/4” Flare, 1” Flare, 2” Flare, 3/4” Flare |
| Outlet | 1-1/2” Flare, 1-1/4” Flare, 1” Flare, 2” Flare, 3/4” Flare |
| Product Number | Size | Direction To Open | Inlet | Outlet |
|---|---|---|---|---|
| RHB41501 | 3/4” | Left (counterclockwise) | 3/4” Flare | 3/4” Flare |
| RHB41502 | 1″ | Left (counterclockwise) | 1” Flare | 1” Flare |
| RHB41503 | 1-1/4” | Left (counterclockwise) | 1-1/4” Flare | 1-1/4” Flare |
| RHB41504 | 1-1/2” | Left (counterclockwise) | 1-1/2” Flare | 1-1/2” Flare |
| RHB41505 | 2” | Left (counterclockwise) | 2” Flare | 2” Flare |
| RHB41601 | 3/4” | Right (clockwise) | 3/4” Flare | 3/4” Flare |
| RHB41602 | 1” | Right (clockwise) | 1” Flare | 1” Flare |
| RHB41603 | 1-1/4” | Right (clockwise) | 1-1/4” Flare | 1-1/4” Flare |
| RHB41604 | 1-1/2” | Right (clockwise) | 1-1/2” Flare | 1-1/2” Flare |
| RHB41605 | 2” | Right (clockwise) | 2” Flare | 2” Flare |
- Manufactured to ANSI/AWWA C800 Standards
- 80 durometer Neoprene rubber seats that seal in both directions
- Full port clear waterway in all sizes
- Double “O” ring stem seals
- Full lead free brass ball, teflon coated for easy turning
- Open left or right, 1/4 turn operation with stop, clearly marked T-head L or R
- Tee-Head Secured with dovetail stem and ball design
- All components of the valve manufactured from Lead Free Brass, Casting Stamped “LF”
- All Cast components poured and manufactured in the USA.
- Easy to install flare ends (industry standard)
- Other End variations available: Flare / Male Iron Pipe, Flare / Female Iron pipe
