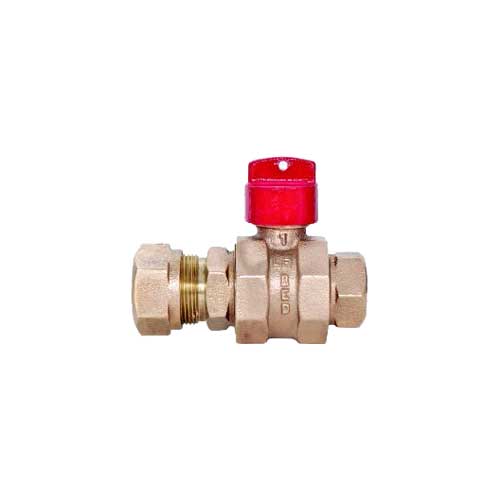

Compression X Female Curb Stops
Price range: $135.20 through $797.96
Red Hed Ball Curb Stops are precision machined to ensure watertight integrity. They have full-size waterways and heavy castings. They are manufactured from lead-free bismuth brass CDA No. C89833. Valves are repeatedly inspected and hydrostatically tested to 300 psi.
NOTE: Stainless steel insert stiffeners are required for use with plastic tubing (CTS) (compression ends only). Optional handle is available for above ground operation.
- Additional information
- Available Sizes
- Features
Additional information
| Size | 1″, 1-1/4”, 1-1/2”, 2”, 3/4” |
|---|---|
| Direction to Open | Left (counterclockwise), Right (clockwise) |
| Inlet | 1-1/2” Compression, 1-1/4” Compression, 1” Compression, 2” Compression, 3/4” Compression |
| Outlet | 1-1/2” Female Iron Pipe, 1-1/4” Female Iron Pipe, 1” Female Iron Pipe, 2” Female Iron Pipe, 3/4” Female Iron Pipe |
| Product Number | Size | Direction To Open | Inlet | Outlet |
|---|---|---|---|---|
| RHB40811 | 3/4” | Left (counterclockwise) | 3/4” Compression | 3/4” Female Iron Pipe |
| RHB40812 | 1″ | Left (counterclockwise) | 1” Compression | 1” Female Iron Pipe |
| RHB40813 | 1-1/4” | Left (counterclockwise) | 1-1/4” Compression | 1-1/4” Female Iron Pipe |
| RHB40814 | 1-1/2” | Left (counterclockwise) | 1-1/2” Compression | 1-1/2” Female Iron Pipe |
| RHB40815 | 2” | Left (counterclockwise) | 2” Compression | 2” Female Iron Pipe |
| RHB40911 | 3/4” | Right (clockwise) | 3/4” Compression | 3/4” Female Iron Pipe |
| RHB40912 | 1” | Right (clockwise) | 1” Compression | 1” Female Iron Pipe |
| RHB40913 | 1-1/4” | Right (clockwise) | 1-1/4” Compression | 1-1/4” Female Iron Pipe |
| RHB40914 | 1-1/2” | Right (clockwise) | 1-1/2” Compression | 1-1/2” Female Iron Pipe |
| RHB40915 | 2” | Right (clockwise) | 2” Compression | 2” Female Iron Pipe |
- Manufactured to ANSI/AWWA C800 Standards
- 80 durometer Neoprene rubber seats that seal in both directions
- Full port clear waterway in all sizes
- Double “O” ring stem seals
- Full lead-free brass ball, teflon coated for easy turning
- Open left or right, 1/4 turn operation with stop, clearly marked T-head L or R
- Tee-Head Secured with dovetail stem and ball design
- All components of the valve manufactured from Lead-Free Brass, Casting Stamped “LF”
- All Cast components poured and manufactured in the USA.
- Easy to install compression end.
